New item!! Composite ball
bearing ratchet blocks - these blocks have composite cheeks
that are UV stabilized, S.S. AISI 316 rivets on innovative
hardcote + PTFE anodised aluminum sheaves with gripping
faces and Delrin ball bearings.

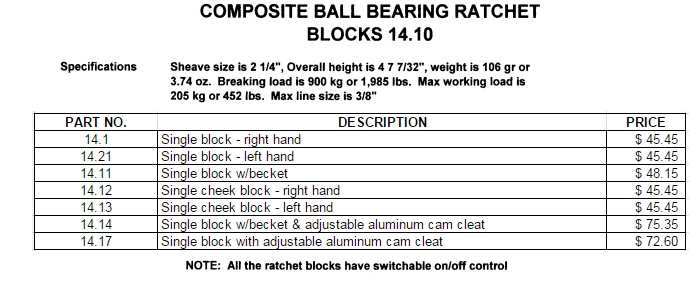

COMPOSITE BALL BEARING RATCHET
BLOCKS 14.10
Specifications: Sheave size
is 2 1/4", Overall height is 4 7 7/32",
weight is 106 gr or 3.74 oz. Breaking load is 900
kg or 1.985 lbs. Max working load is 205 kg or 452
lbs. Max line size is 3/8"
. Part
Number |
Description |
.Price |

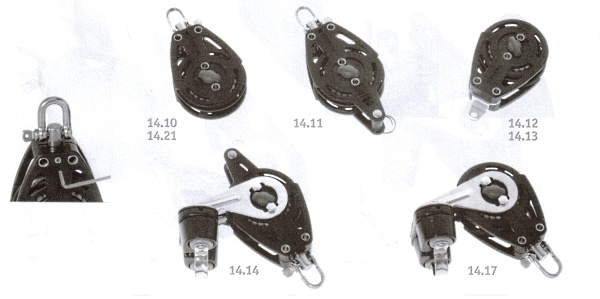

14.1 |
Single block - right hand |
$49.00 |
14.21 |
Single block - left hand |
$49.00 |
14.11 |
Single block w/becket |
$51.65 |
14.12 |
Single cheek block - right hand |
$49.00 |
14.13 |
Single cheek block - left hand |
$49.00 |
14.14 |
Single block w/becket & adjustable
aluminum cam cleat |
$80.65 |
14.17 |
Single block with adjustable aluminum
cam cleat |
$72.60 |
Note: All the ratchet blocks have switchable on/off
control

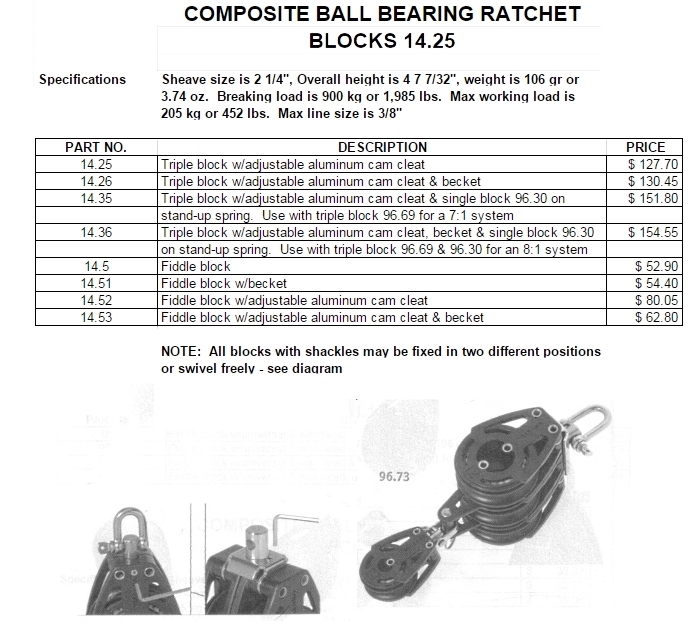

COMPOSITE BALL
BEARING RATCHET BLOCKS 14.25
Specifications: Sheave size
is 2 1/4", Overall height is 4 7 7/32".
weight is 106 gr or 3/74 oz. Breaking load is 900
kg or 1,985 lbs. Max working load is 205 kg or 452
lbs. Max line size is 3/8"
. Part
Number |
Description |
.Price |

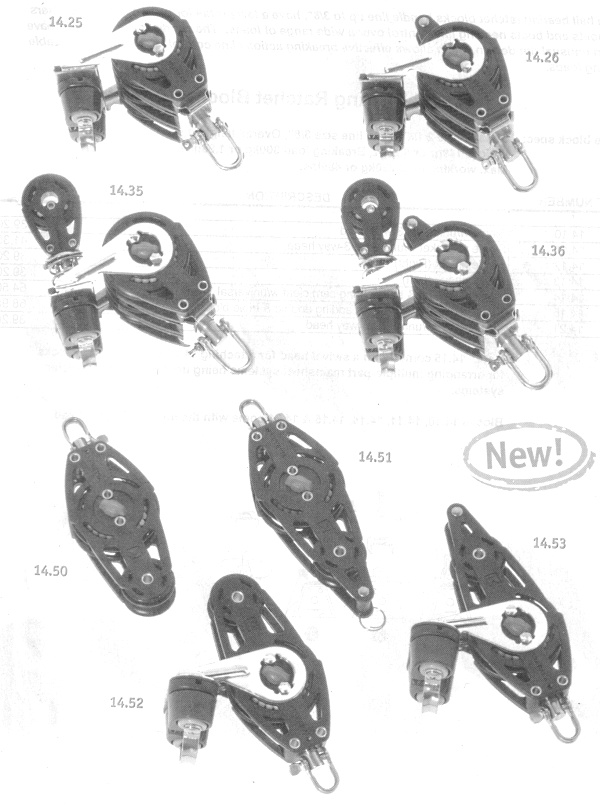

14.25 |
Triple block w/adjustable
aluminum cam cleat |
$127.70 |
14.26 |
Triple block w/adjustable aluminum cam cleat
& becket |
$130.45 |
14.35
|
Triple block w/adjustable aluminum cam cleat
& single block 96.30 on stand-up spring. Use
with triple block 96.69 for a 7:1 system |
$151.80 |
14.36
|
Triple block w/adjustable aluminum cam cleat,
becket & single block 96.30 on stand-up spring.
Use with triple block 96.69 and 96.30 for an 8:1
system |
$154.55 |
14.5 |
Fiddle block |
$52.90 |
14.51 |
Fiddle block w/becket |
$54.40 |
14.52 |
Fiddle block w/adjustable aluminum cam cleat |
$80.05 |
14.53 |
Fiddle block w/adjustable aluminum cam cleat
& becket |
$62.80 |
NOTE: All blocks with shackles may
be fixed in two different positions or swivel freely
- see diagram
|
