| Enjoy family
cruising or fishing with a perfectly peaceful mind:
"S" headsail reefing gear is a totally reliable
crewmember.
All moulded components
are manufactured in Plastimo's Lorient, France workshops,
using high-pressure injection techniques. This engineering
process gives the composite material properties which
are comparable to certain metals, while remaining totally
impervious to corrosion, therefore virtually maintenance
free.
Our "S" series of headsail gears
are extremely easy to install and take down. It requires
no unstepping of the mast, and no modification of the
forestay, thanks to a unique patented design which allows
quick and easy installation directly on the tensioned
forestay. The inner PVC liner is
clipped onto the forestay and the aluminum spar slides
easily over the PVC liner. The risk of tearing sails at
junctions is therefore much reduced.
The unique design allows swift and easy
installation directly on the tensioned forestay. Combined
with the mounting of PVC and alloy spars alternatively,
this system guarantees maximum performance and reliability
on most types of yachts, without altering the boats original
characteristics.
|
|
|
406
S - 14 to 20 ft |
609
S - 20 to 26 ft |
811
S - 26 to 33 ft |

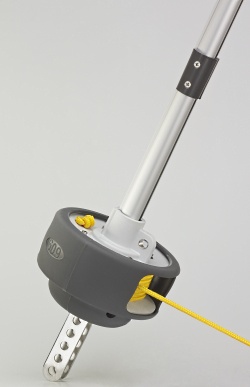

406 S : for boats from 4
to 6 m (14 to 20 ft)
The 406 T features all the advantages of a large
headsail reefing sytem : Delrin® twin ball bearing
races in both drum and halyard swivel. All components
are manufactured from polyarylamide.

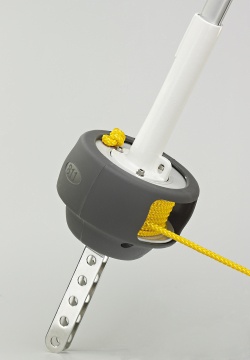

609 S : for boats from 6 to 8 m (20 to 26
ft)
The 608 S is fitted with twin ball bearing races
- alternating Delrin® and stainless steel- and
stemhead brackets with adjustable width. Besides
their stylish design, the drum cheeks swivel through
360° : by providing the best angle to the line,
the drum cheeks prevent snagging and chafing.

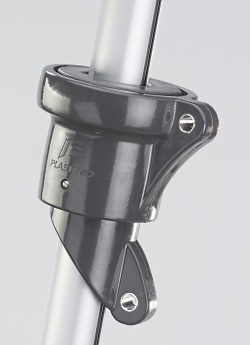

811 S : for boats from 8 to 10 m (26 to
33 ft)
Like the 608 S, the 810 S features drum cheeks that
swivel through 360°, thus preventing snagging
and chafing. Chainplates are fully adjustable, in
order to adapt to either chainplate or turnbuckle
mounting. The drum has a double set of Torlon Ball
Bearings alternating with Delrin bearings for a
smooth drum rotation with almost zero drag. |
ACCESSORIES |
 |
Stainless
Steel Halyard for feeder, for 406 - #25677
for 811 & 609- #25677 |
 |
Halyard diverter
wheel, prevents the genoa halyard from
twisting around the spar - #25720 |
|
|
Jib
Reefing "S" Series |
406S |
609S |
811S |
Forestay diameter |
5/32" - 9/32" |
5/32" - 9/32" |
5/32" - 9/32" |
Supplied complete for
forestay |
21' 2" |
31' 4" |
36' 7" |
Maximum headsail size |
130 sq ft |
270 |
380 |
Luffrope diameter |
#8 |
#8 |
#8 |
Drum sheet size |
1/4" |
5/16" |
5/16" |
|
