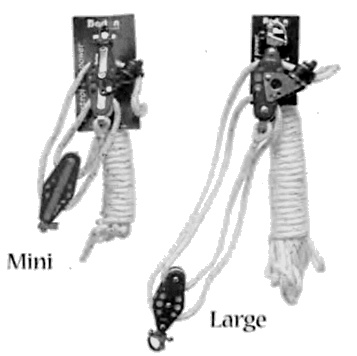

Rope Vangs by Barton

Sail Care is proud to offer these innovative rope vangs!

Rope or Soft Vangs come in a variety of sizes depending on the length of the boat. They are all pretty much generic in that you have two blocks; one is attached to the boom and the other is attached to the base of the mast usually in a 4 to 1 arrangement. The ideal angle for this is 45 degrees. Note: to get 45 degrees, measure from the bottom of the boom at the mast to the base of the mast. Measure that same distance from the mast along the bottom of the boom. That point to the base of the mast should be 45 degrees.

Most rope vang setups have a cam cleat attached to one of the blocks. The tail of the line would end up passing through the cam cleat and this is where you would make the adjustment for the vang and secure the line.

The blocks are best attached to the bottom of the boom and the base of the mast by a Snap Shackle. This keeps the blocks securely in place but also allows you to disconnect the vang at the base of the mast and reattach it to the toe rail when going down wind. This acts as a preventer to keep the main from being accidentally backwinded, causing you make an accidental jibe (which can cause serious damage).

Rope vangs are a great mainsail trimming aid. Used in conjunction with the mainsheet system and the main halyard or cunningham, you should be able to shape the main to the wind that is available so that you can get the best performance on all points of sail.

If you like all control lines brought back to the cockpit, you can accomplish that by using just two standard blocks, usually fiddle style block, bringing the tail of the line off the block at the mast, across the deck to a deck organizer or single cheek block, and then back to the cockpit where a number of different items or pieces of hardware can be used to secure it.

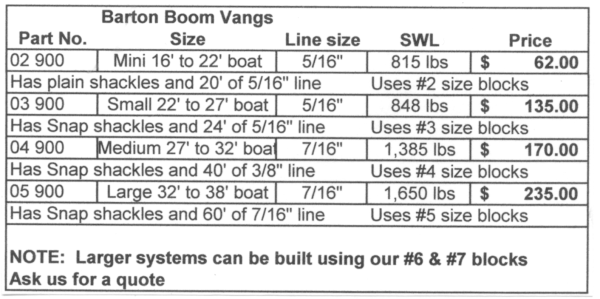

ROPE VANGS
PART NO
Size
Line Size
SWL
price
02 900
has plain shackles and 20' of 5/16' line
uses #2 size blocks
Mini 16' to 22' boat
5/16"
815 lbs
$84.00
03 900
Has snap shackles and 24' of 5/16" line
uses #3 size blocks
Small 22' to 27' boat
5/16"
848 lbs
$184.00
04 900
Has snap shackles and 40' of 3/8" line
uses #4 size blocks
medium 27' to 32' boat
7/16"
1,385 lbs
$224.00
05 900
Has snap shackles and 60' of 7/16" line
uses #5 size blocks
large 32' to 38' boat
7/16"
1650 lbs
$287.00
NOTE: larger systems can be built using our #6 and #7 blocks.
Ask us for a quote!
